PADUA FACILITIES

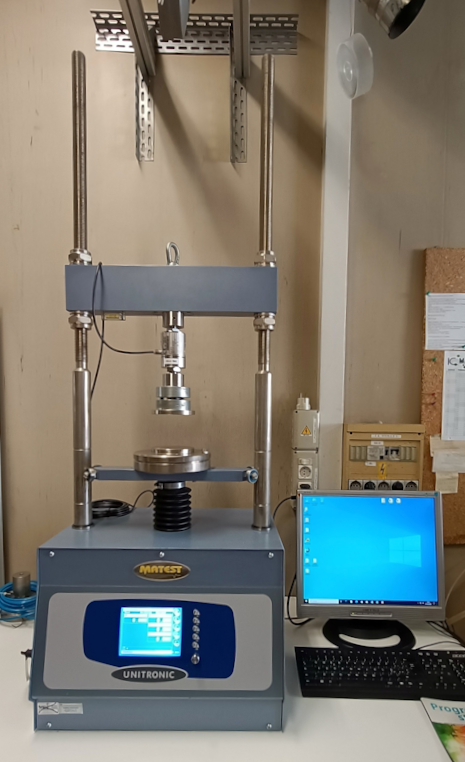

Matest Unitronic S205
Universal electro-mechanic multipurpose frame Matest Unitronic S205, equipped with 50, 25 and 2.5 kN load cells.
Maximum force in compression: 50 kN. Diameter of the plates: 100 mm.
Maximum force in tension: 25 kN. Grip jaws for 5-12 mm rods (diameter) and for plates up to 25×10 mm².
Optional extensometer: gauge length 50 mm (for rectangular cross sections).
Matest Unitronic S205 Press
Padua
Universal electro-mechanic multipurpose frame Matest Unitronic S205, equipped with 50, 25 and 2.5 kN load cells.
Maximum force in compression: 50 kN. Diameter of the plates: 100 mm.
Maximum force in tension: 25 kN. Grip jaws for 5-12 mm rods (diameter) and for plates up to 25×10 mm² (width x thickness).
Optional extensometer with gauge length 50 mm (for rectangular cross sections).
